40FT 12-tube 9000Nm3 250bar CNG Tube Skid Containers

40FT 12-tube 9000Nm3 250bar CNG Tube Skid Containers
  • 40FT 12-tube 9000Nm3 250bar CNG Tube Skid Containers
  • 40FT 12-tube 9000Nm3 250bar CNG Tube Skid Containers
  • 40FT 12-tube 9000Nm3 250bar CNG Tube Skid Containers
  • 40FT 12-tube 9000Nm3 250bar CNG Tube Skid Containers

Compressed natural gas (CNG) is a fuel gas mainly composed of methane (CH4), compressed to less than 1% of the volume it occupies at standard atmospheric pressure. It is stored and distributed in hard containers at a pressure of 20-25Mpa



Details

Top Quality China CNG Jumbo Tube Skid Container Trailer
Characteristics of Minwen's CNG tube skid containers

1. Frame structure integrated constructed, chassis diamantlable.

2. Gas cylinders can be assembled freely and can be assembled as per customer’s requirement.

3. 20ft and 40ft container is convenient for marine shipping, road transport and enter limited space more freely.


Standards of Minwen's CNG tube skid containers

Cylinder according to International Standard: ISO 11120,DOT

Container Frame standard: ISO 1496/ISO668

Container Corner fitting Standard: ISO 1161

Inspection body

Bureau Veritas (BV)

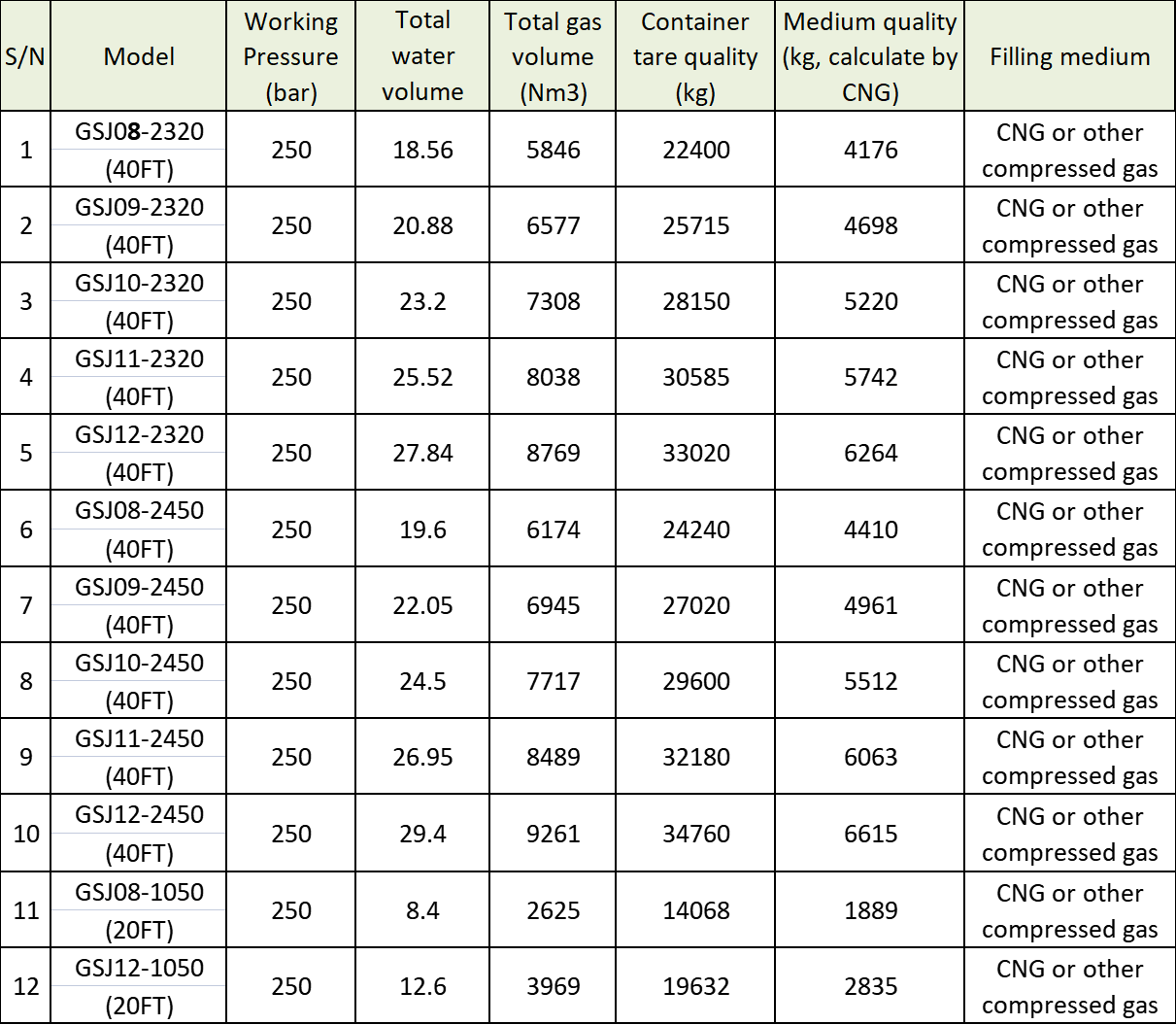

 The specification of Minwen's CNG tube skid containers are as below
