15Nm3/h 300bar Oil-free Air-cooled Argon Compressors for Tank vapor recovery

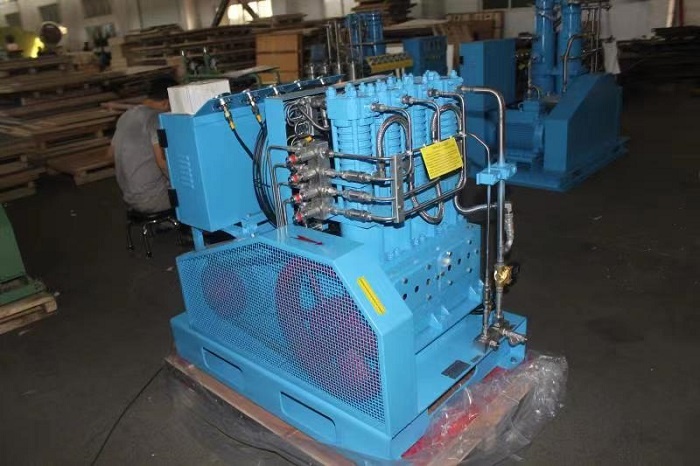

Oil-free Air-cooled Argon Compressors
Minwen high pressure argon compressor belongs to oil-free reciprocating piston type construction. it is divided into three-stage, four-stage or five-stage compression according to the displacement and pressure. It is divided into air-cooled type and water-cooled type according to the cooling type.
There is no lubricating oil inside the argon compressors, grease lubricated sealing type bearing is adopted for the rotary moving components, the moving seals inside the cylinder are made of self-lubricating material so as to ensure that the compressed gas will never contact any oil; besides, it can be used to compress gas medium with stable properties like clean air, nitrogen, carbon dioxide, etc. The machine adopts automatic control mode with low leakage and noise and without the need to arrange dedicated person for attention, and can operate over long term reliably.
Please send us your inquiries by email or WhatsApp. Our Engineers Team will make technical proposal based on your specific demands.
|
Specification of 15Nm3/h@30Mpa air-cooled oil-free argon gas compressor |
|||
|
Medium |
Argon |
Quantity |
1 piece |
|
Inlet pressure MPa (G) |
1 |
Inlet temperature |
≤ 40 ℃ |
|
Outlet pressure Mpa (G) |
30 |
Outlet temperature (after cooled) |
≤ 50 ℃ |
|
Flow rate |
15 Nm3/h |
Piston stroke mm |
40 |
|
Model No. |
GArZD-15/10-300 |
Compression stages |
4 |
|
Type |
Vertical oil-free lubrication |
Cylinder quantity |
4 |
|
Crankshaft speed r/min |
260 |
Voltage V |
380 |
|
Cooling method |
Air cooled |
Cooling water flow t/h |
--- |
|
Shaft power KW |
≤3.9kw |
Motor speed r/min |
730 |
|
Gas Inlet & outlet joint mm |
15, M16*1.5-Φ14 |
Water inlet & outlet joint mm |
--- |
|
Motor |
5.5KW 380V 50Hz |
|
|
|
Dimensions mm*mm*mm |
1100*750*980 |
Net weight T |
0.48 |
|
Transfer method |
Belt drive |
|
|
|
Material in contact with gas |
Cylinder: Stainless steel |
|
|
|
Air valve: Stainless steel |
|
|
|
|
Piping, cooler: Stainless steel |
|
|
|
|
Supply scope ofthe argon gas compressor unit |
Main engine, motor, skid-mounted chassis, starting cabinet, intake filter, pre-machine meter and control components, safety valve, accompanying documents, spare parts (Note: The final technical agreement shall prevail). |
||
|
Other precautions |
Sealing method: packing seal. |
||
