Minwen's oil-free gas compressor for nitrogen, oxygen, hydrogen, argon, helium, carbon dioxide, Disulfide hexafluoride and other gas compressors. We have more than 100 models in 10 series. Welcome to contact us anytime.



Details

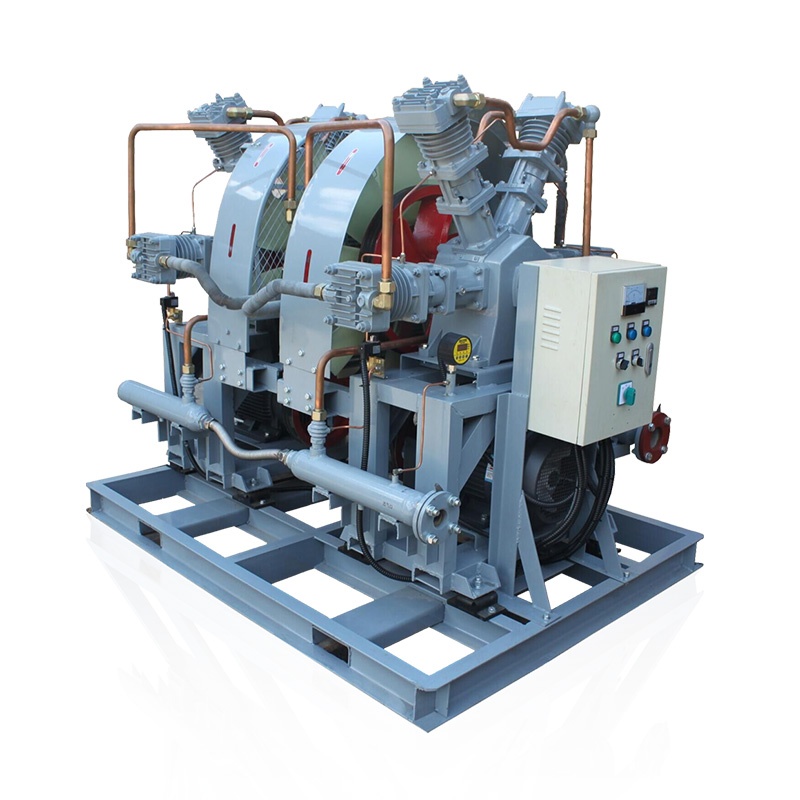

5Nm3/h ~ 60Nm3/h 15MPa/ 20MPa Oil-free Reciprocating Oxygen/ Nitrogen/ Argon Gas Compressors
Oil free gas compressors use various technologies that bypass the need for oil. In oil lubricated compressors, oil is used in the compression chamber to cool and seal the air. In an oil-free compressor, no matter what type of technology is being used, no oil will ever be used in the compression chamber.


Technical parameters of oil-free reciprocating oxygen/ nitrogen/ argon Compressors

Model

Inlet pressure Bar

Outlet pressure Bar

Capacity
Nm3/h

Power
kW

Inlet
size

Outlet
size

Dimension
mm

Weight
kg

 Speed
r/min

WWY-(1-5)/4-150/200

4.0

150/ 200

5

4.0

Rc1/2

G5/8

1350 *850 *1100

380

470

WWY- 10/4-150/200

4.0

150/ 200

10

5.5

Rc1/2

G5/8

1350 *1050 *1100

410

470

WWY- 15/4-150/200

4.0

150/ 200

15

7.5

Rc1/2

G5/8

1350 *1050 *1100

420

640

WWY-20/4-150/200

4.0

150/ 200

20

11

Rc1/2

G5/8

1350 *1050 *1100

430

580

WWY-25/4-150/200

4.0

150/ 200

25

11

Rc1/2

G5/8

1350 *1050 *1100

430

640

WWY-30/4-150/200

4.0

150/ 200

30

15

Rc1/2

G5/8

1350 *1050 *1100

450

470

WWY-35/4-150/200

4.0

150/ 200

35

15

Rc1/2

G5/8

1350 *1050 *1100

450

470

WWY-40/4-150/200

4.0

150/ 200

40

15

Rc1/2

G5/8

1350 *1050 *1100

450

580

SWY- 45/4-150/200

4.0

150/ 200

45

18.5

Rc1

G5/8

1450 *1100 *1250

520

580

SWY- 50/4-150/200

4.0

150/ 200

50

18.5

Rc1

G5/8

1450 *1100 *1250

520

580

SWY- 55/4-150/200

4.0

150/ 200

55

18.5

Rc1

G5/8

1450 *1100 *1250

520

580

SWY- 60/4-150/200

4.0

150/ 200

60

22

Rc1

G5/8

1450 *1100 *1250

540

640

SWY- 65/4-150/200

4.0

150/ 200

65

22

Rc1

G5/8

1450 *1100 *1250

540

720

SWY- 70/4-150/200

4.0

150/ 200

70

22

Rc1

G5/8

1450 *1100 *1250

540

720

SWY-75/4-150/200

4.0

150/ 200

75

22

Rc1

G5/8

1450*1100*1250

540

720

 Notes: More specification of the oil-free compressors are available based on clients‘ special requirement.

The basic parameters listed in above table can be confirmed according to the actual working conditions.

- Touch screen, PLC control

- Remote control (optional)

- Cooling mode: air cooling + water cooling (with water tank and circulating pump, no external pipeline is required)

- Circular scrolling reminder for faulty items

- Inter stage pressure, temperature, overload, overheating, cooling water fault shutdown
